Six-sided inspection of FAU components

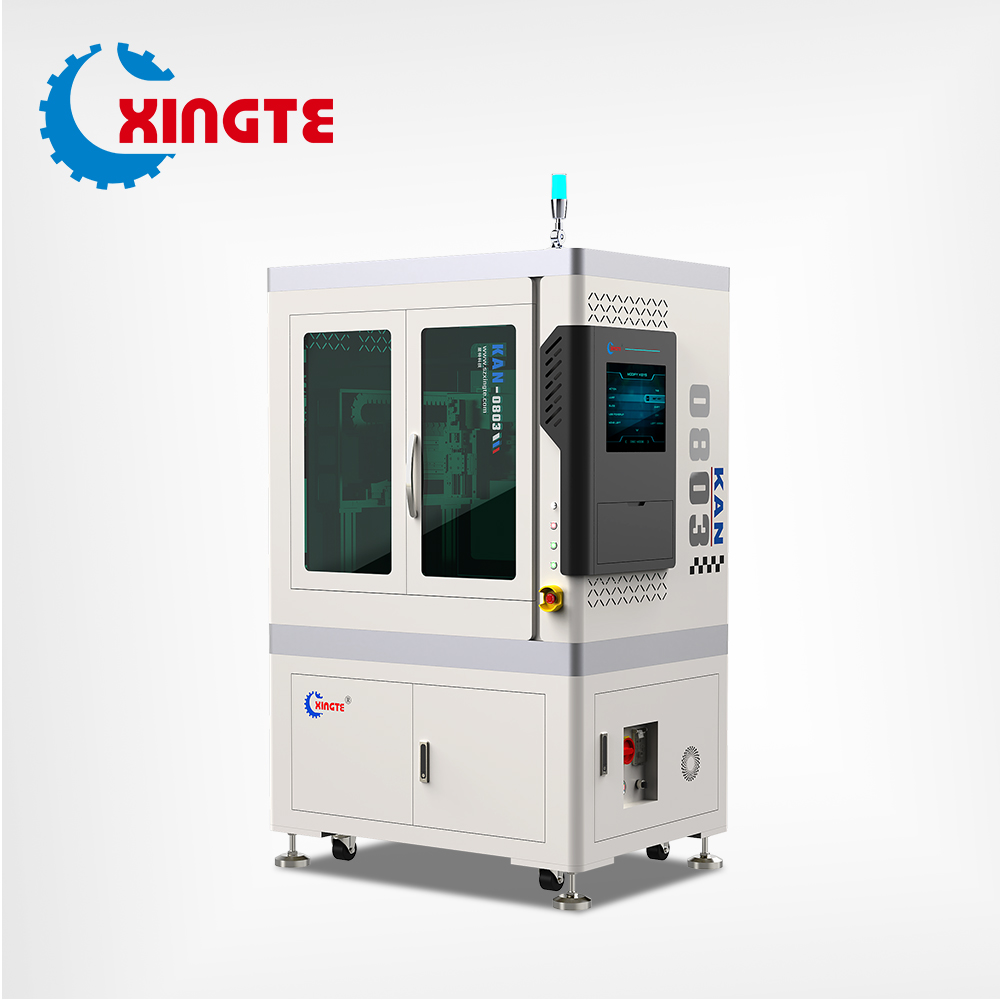

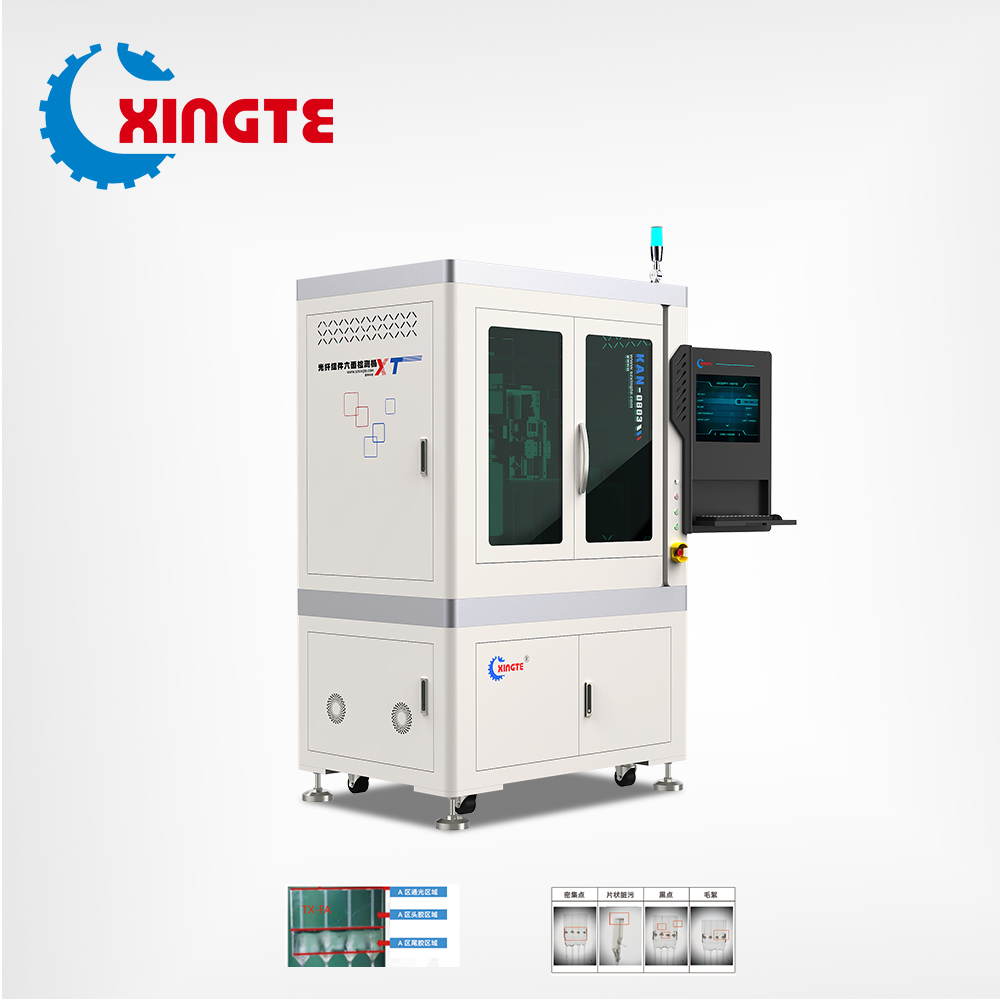

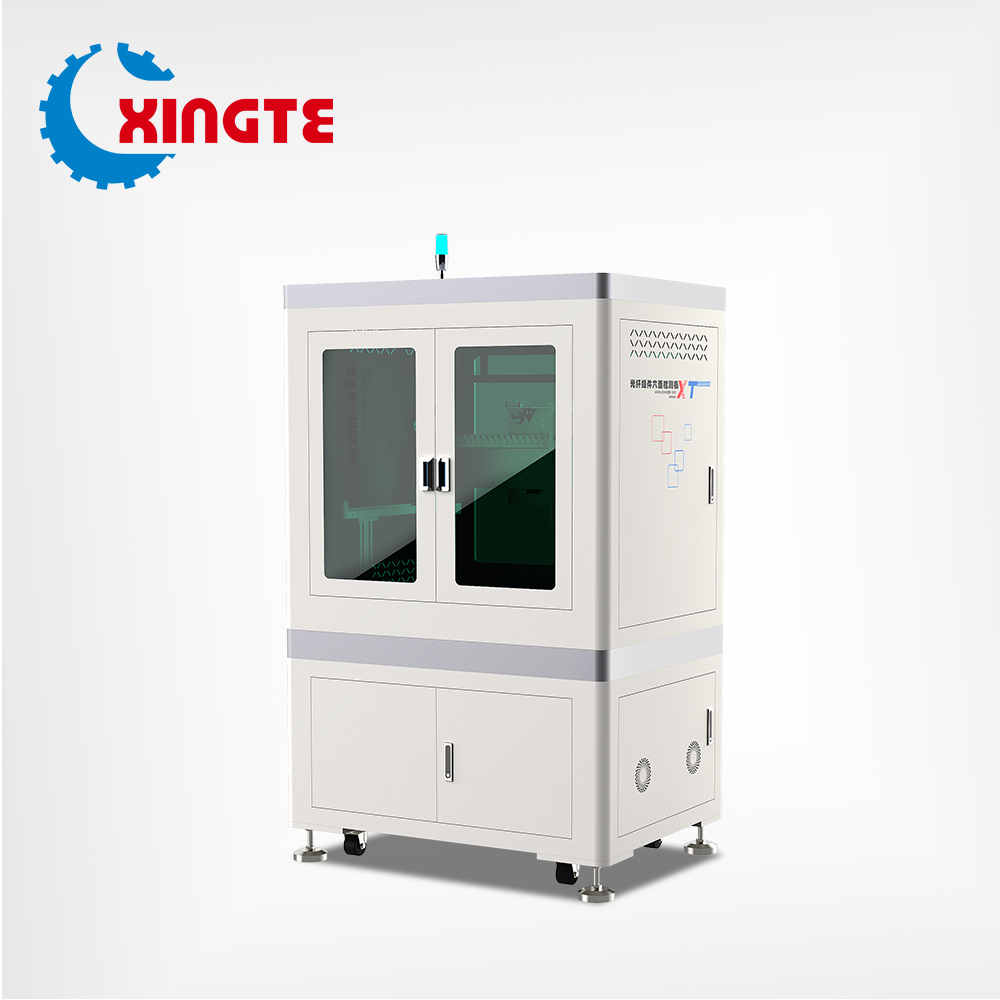

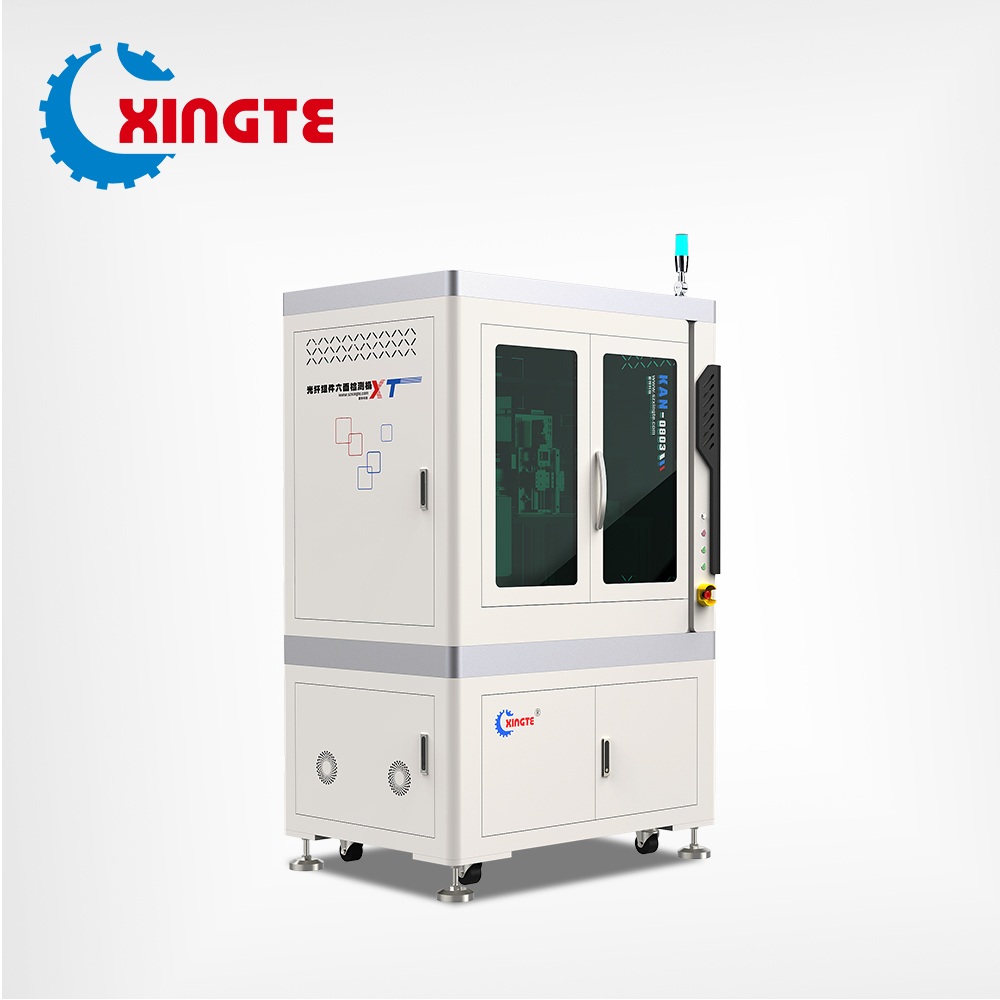

This multi-dimensional visual inspection equipment is designed for FA fiber arrays and optical fiber assemblies. Multi-station vision cameras synchronously capture images from six directions of the assembly. It conducts one-stop screening of various defects including overall dimension deviation, V-groove offset, cover plate blemishes, adhesive overflow, adhesive shortage, shell scratches, and component misalignment. It is applied for full visual quality inspection of finished fiber array assemblies to prevent defective products from flowing into subsequent processes.

• Fast inspection cycle — meets quality inspection requirements for mass production of FA assemblies.
• Modular fixture design — enables quick changeover to adapt to fiber array assemblies of different specifications.
• Synchronized 6-sided imaging — full-range inspection of the workpiece in one feeding operation with no blind zones.
• Automatic defect marking and data reporting — supports iteration and optimization of production processes.
• AI algorithm — simultaneously identifies multiple defect types such as dimensional deviation, adhesive defects, surface dents, and assembly misalignment.
