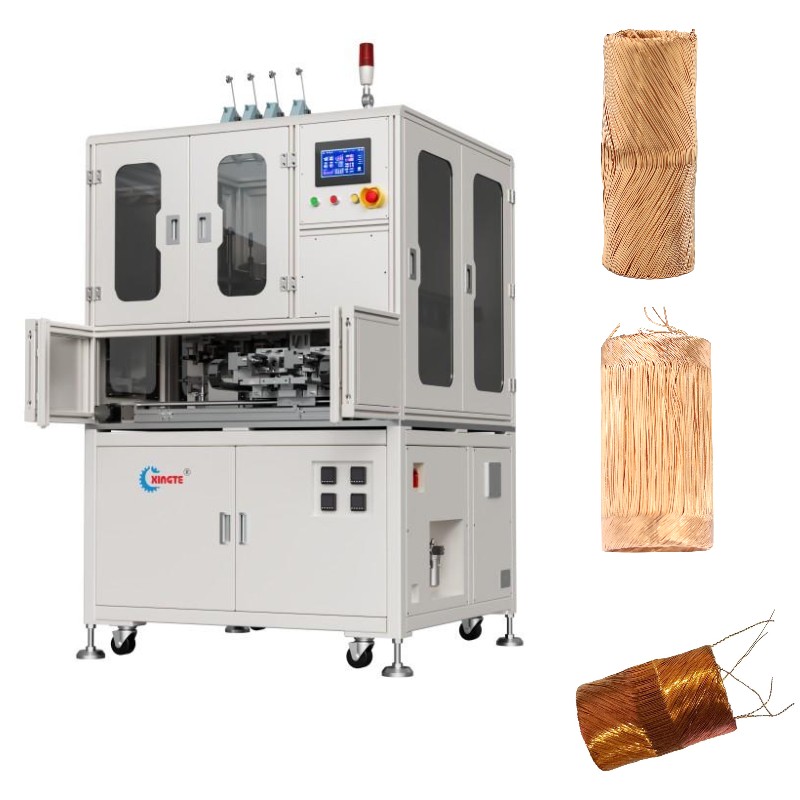

This is the latest air cup motor winding machine, specifically designed for air cup motor winding. It handles air coil motor ranging from 6mm to 32mm in a single step! The production process is
fully automated, including winding, lead wire pulling, flattening, hot pressing, coiling, hot pressing, and unloading. This process requires no human intervention, directly producing flat-pressed
heated coil sheets. This significantly reduces labor costs and increases efficiency, while eliminating defective products caused by human error. It’s ideal for mass production of brushed and
brushless coreless motors.
Product parameters
| Model | XT-R24013 |
| No. of spindles | 2 spindles |
| Maxi winding speed | 6000 Rpm |
| Spindle positioning accuracy | 0.05° |
| Wire size | Ø0.08-0.3mm |
| moving positioning accuracy | 0.015mm |
| Control spindle | 6 spindles |
| Power supply | AC 220V,50/60Hz |
| Power | 3.5Kw |
| Air pressure | 0.4- 0.6MPa |
| Machine dimensions | (L)1200x(W)1100x(H)1900mm |
| Machine weight | Approx. 450kgs |
Applicable industries:
brushed/brushless air cup motor coils, robot motors
