Product Overview

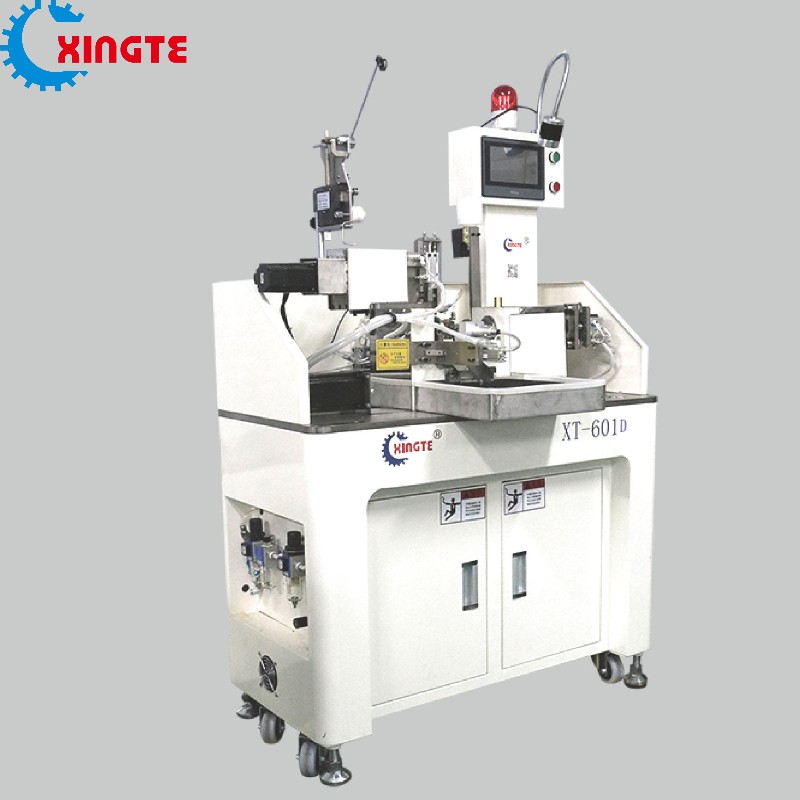

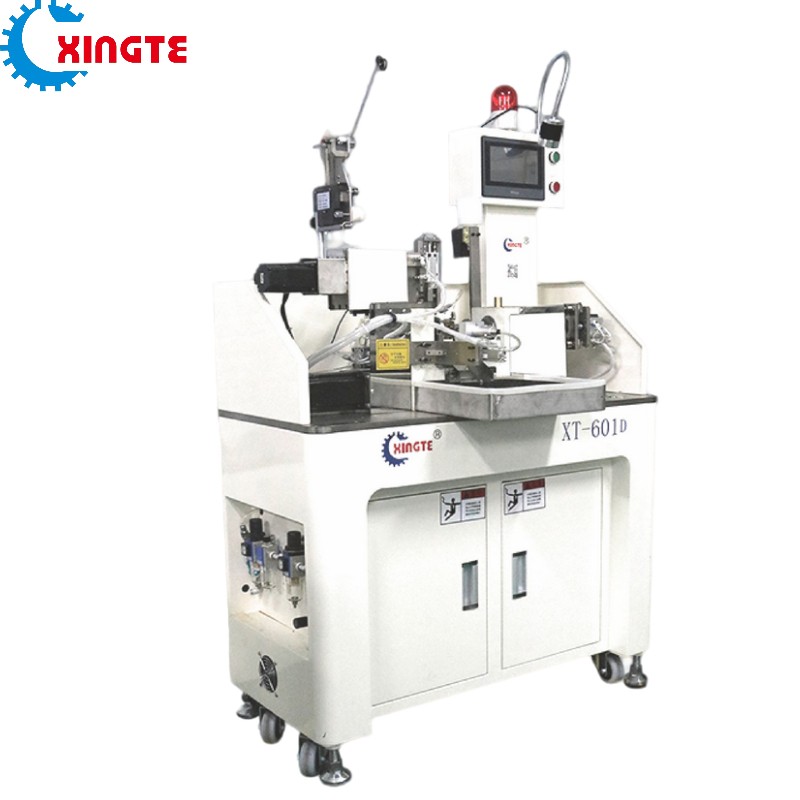

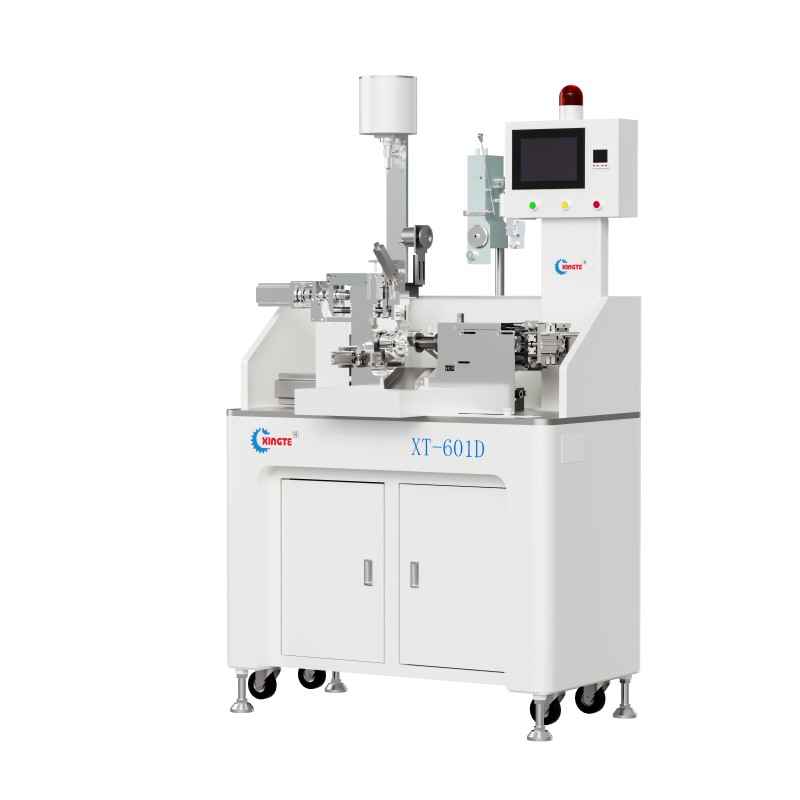

This equipment is a single-axis automatic winding machine independently developed and produced by XINGTE for wireless charging transmitter coil winding
This machine integrates mechanical, electronic, and pneumatic technologies into one, and is relatively advanced in level;
it can reliably realize For automated winding of coil products, this equipment is one of the most efficient models in the industry.
Product Features
The control system adopts an all-English touch screen interface;
The metal materials used have been treated with special processes to extend the service life of the equipment;
The mechanical movement part adopts imported servo motors and high-precision ball screws;
The whole machine adopts a safety design to prevent accidents from occurring during operation;
The equipment can achieve stable and efficient production 24 hours a day after being powered on.
It has strong compatibility and can be compatible with fully automated production lines and unmanned workshops.
Product Parameters
| Model | XT-601D |
| Wire diameter | 0.025-0.5mm |
| Coil stack height | ≤ 25mm |
| Coil outer diameter | ≤ 60mm ( can customized) |
| Yield rate | 99.8% |
| Lead wire length | 40-70mm ( can customized) |
| Power supply | AC220V,50/60Hz |
| Capacity | 800-1000pcs/ H |
| Power | 2Kw |
| Air supply | Min. 0.6MPa |
| Machine dimensions | 980(L)x460(W)x1,500(H)mm |
| Machine weight | Approx. 280kgs |
Application areas

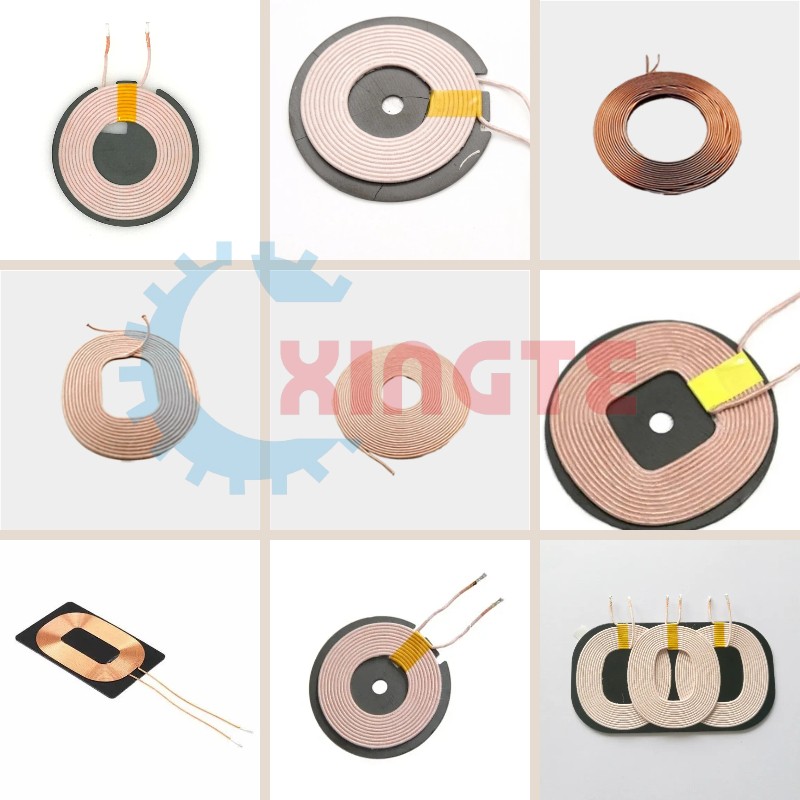

Wireless charging receiver coil,multi-strand coil, transmitter coil, etc.
