Product Features
After the U shell is magnetized, it is installed to the voice coil diaphragm and glued to achieve automatic assembly of the earphones.
Adopts CCD diaphragm capture system, 12-bit high-precision segmenter, and customized magnetizing table;
Material picking and unloading are completed automatically, saving 3-5 labor costs;
It can be used with our company’s fully automatic sound film combination winding machine;

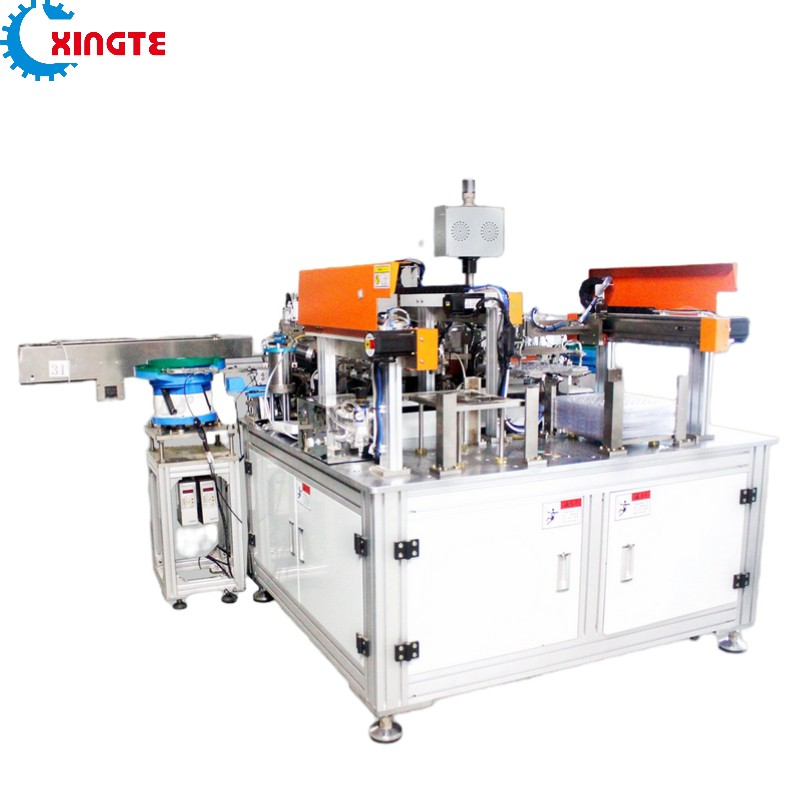

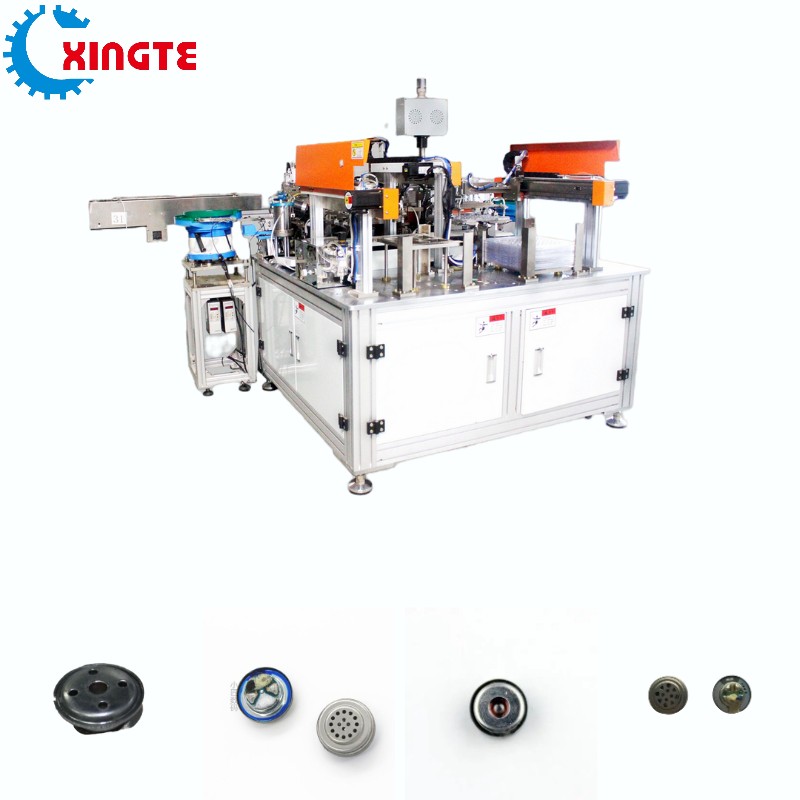

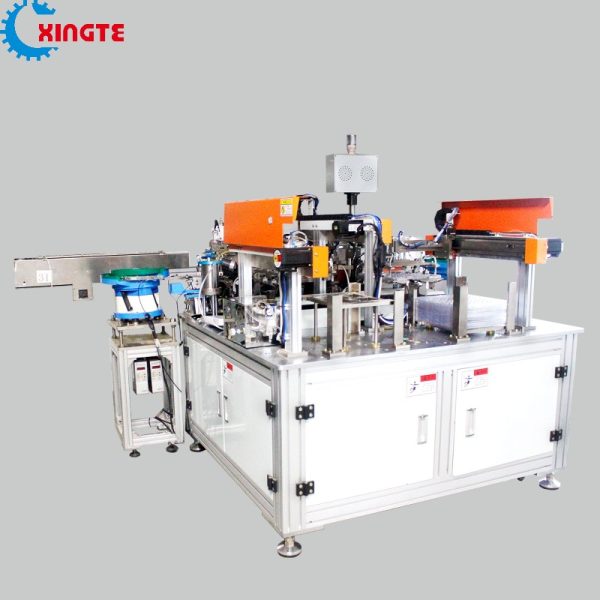

This equipment is used in the assembly of earphone speakers. After magnetizing the U shell, it is installed to the voice coil diaphragm. Then perform the upper cover operation and apply glue to achieve automatic assembly of the headphone speaker.
Product Parameters
| Model | XT-606MDS |
| Control mode | PLC touch screen |
| Capacity | 1500pcs/H |
| Stator Stack height | Ref: Max. 150mm |
| Yield rate | 99.8% |
| Power supply | AC220V,50/60Hz |
| Power | 3.5Kw |
| Air supply | Min. 0.6MPa |
| Machine dimensions | 1,800(L)x1,900(W)x1,8800(H)mm |
| Machine weight | Approx. 500kgs |
Applications

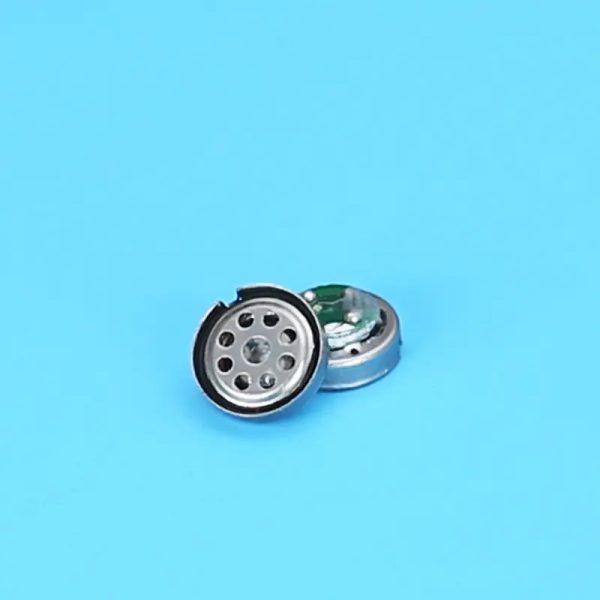

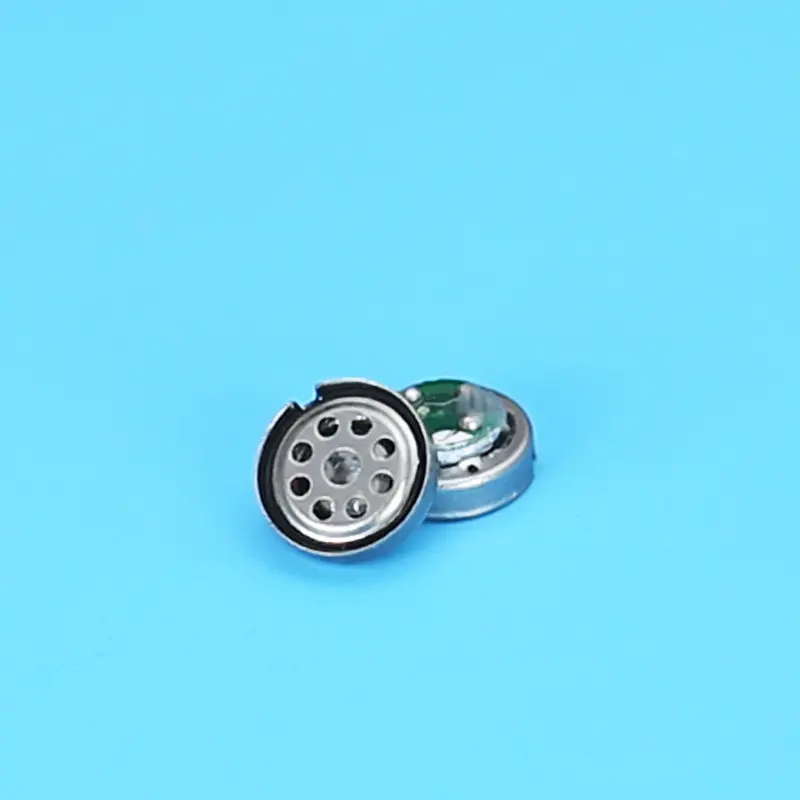

Specially designed for Various earphone speakers
