Equipment overview:

This machine is a special model for assembly and bonding of voice coil and diaphragm (sound film combination), which can wind both alcohol-soluble and hot-air enameled wires. Mainly used in the combined winding of voice coil and diaphragm, with high degree of automation. The equipment has the characteristics of high efficiency, high production capacity, and 24 hours uninterrupted production. Greatly save labor costs. It can meet the needs of various users for automated production and has been unanimously recognized by customers.

Features:

The control system adopts a full Chinese touch screen interface, which is easy to operate, and no basic personnel can be on duty after two days of training. The mechanical operation part is reasonable, making the production efficiency of the equipment higher than that of imported equipment. The metal materials used are treated with special processes, which significantly improves the wear resistance and corrosion resistance of the equipment compared with ordinary equipment, and extends the service life of the equipment. The mechanical parts all use high-precision servo motors and stepping motors, and imported bearings ensure the high efficiency and high precision of the products; it can truly achieve stable and efficient production within 24 hours of starting up. It can be compatible with fully automated production lines, and one person can manage multiple equipment at the same time. Diaphragm feeding adopts multi-station feeding trough, no need to feed for a long time, replenishment at any time without stopping, etc., the diaphragm can reach single-piece feeding without affecting the rear stations. This machine is the most efficient and stable model in the industry, and the output can be around 1800-2000 PCS/H within 62 circles per hour.

Applicable fields:

    Headphone sound film, Bluetooth speaker sound film, smart speaker sound film, earphone sound film, Bluetooth headset sound film, toy speaker sound film, etc.

Device parameters:

Model: XT-606MD

Number of fly fork axes: 1 axis

Dimensions: 1800(W)×1350(L)×1600(H)mm

Flying fork rotation speed: Max.4800rpm (different according to the outer diameter of the flying fork)

Machine weight: about 750kg (total)

Coil height: Max.3.2mm

Power supply: AC220V±10% single phase 50/60Hz

Applicable wire diameter: 0.01-0.3 (mm)

Power consumption: about 3.5KW/hour

Coil height: ≤15mm

Air source: above 0.45Mpa

Coil outer diameter: ≤φ20mm (special can be customized)

Spindle direction: clockwise/counterclockwise

Lead wire position: same direction upward

Step memory capacity: 9999

Lead wire length: 20-55mm (special can be customized)

Control system: touch screen

Thread cutting method: air pressure cutting

Number of control axes: 8-axis motor

Diaphragm outer diameter size: ∅6- ∅48

Tensioner: Servo Tensioner

Diaphragm thickness: ≥0.006mm

Sound film rotation mode: 12 stations

Coil curing method: preheating the fixture and curing by heating

Capacity: 1800-2000pcs per hour. Take 62 circles as an example

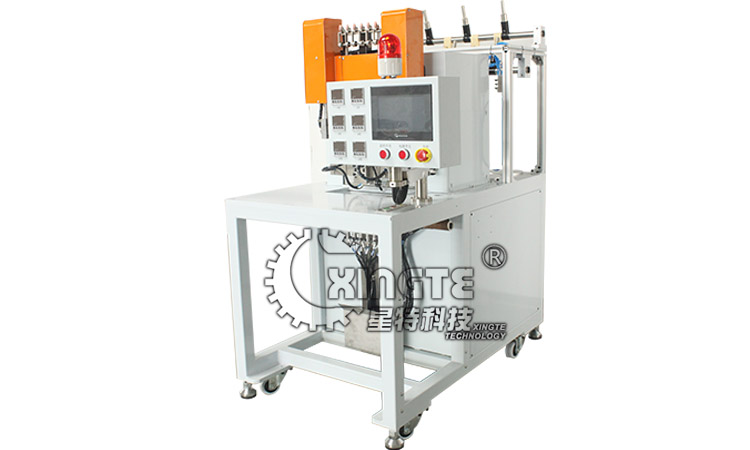

Equipment appearance:
