Equipment Overview:
This machine is an automatic magnetic circuit assembly machine for mobile phone horn. Each fixture is equipped with two products. It is suitable for anaerobic adhesive and AB glue. The machine also has the functions of automatic discharge, magnet magnetization, CCD detection and dispensing, CCD concentricity detection, shear force detection, defective product cleaning, finished product loading, etc. the machine has a working rate of more than 95% and a good product rate of more than 99%. It can produce 3000-5000 pieces per hourProducts, high production efficiency, outstanding advantages in the replacement of labor.
Equipment features:
The system adopts CNC touch screen full Chinese interface, easy to operate, simple training, intelligent monitoring, cost saving, continuous 24-hour production, and can be compatible with automatic production line and unmanned workshop.Adopt full servo motor and high precision grinding screw control, high efficiency, high precision, belongs to the industry high-yield model.Special coils can be designed according to customer requirements.
Field of application:
mobile phone
Equipment parameters:
|
name |
parameter
|
name |
parameter |
|
model |
XT-Q600 |
Dimensions |
3000mm(L)*1500mm(w)*1750(H) |
|
Machine weight |
1000-2000KG
|
Power Supply |
AC220 V ± 10% single phase 50 / 60Hz
|
|
Power consumption |
About 3-5kw / h |
Air source |
0.5-0.8Mpa |
|
Control system |
Touch screen + multi axis motion control card |
Dispensing control system |
4-8set |
|
servo motor |
8set |
Precision vibrating plate |
3-5set
|
|
Magnetizer |
According to the actual production configuration of 1-5 sets
|
Mechanical arm |
Multiple sets
|
|
Baking oven |
1set |
|
|

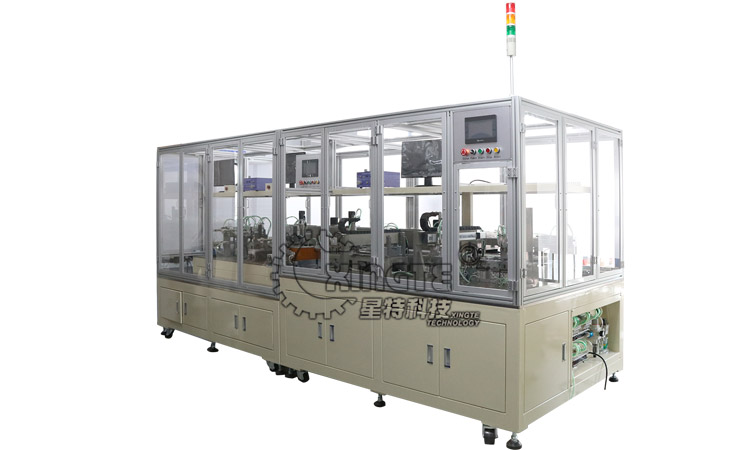

Equipment appearance:
